5D BIM is the practice of connecting cost information to model elements so that quantities, rates, and totals update as the design changes. Its promise is a live cost plan — design a bay differently in the morning, see the cost consequence in the afternoon.
That promise is achievable. It requires more discipline than the software demonstrations suggest, and most implementations fail on the same three points.
What 5D is actually for
The value is not faster estimating. Estimating was never the bottleneck. The value is cost feedback during design, at the point where decisions are cheap to change.
On a conventional project, a cost check occurs at each stage gate. The design team makes hundreds of decisions between gates, learns the cost consequence weeks later, and then value-engineers backwards. On a 5D project, the consequence of a façade module change, a structural grid change, or a partition specification change is visible within the design week.
Framing 5D as an estimating tool rather than a design-decision tool leads to disappointing implementations, because it puts the model at the end of the process instead of alongside it.
The three prerequisites
1. A model structured for cost, not only for geometry.
Elements must be classified consistently — using Uniformat, OmniClass, Uniclass, or a firm-specific breakdown — carried as a parameter on every element. Classification applied inconsistently, or applied at the end of a stage, cannot support live cost.
2. A mapping between model elements and cost items.
This is the substance of any 5D implementation. Each model element type maps to one or more cost items, with rules covering how quantities are derived. A wall maps not only to a wall cost item but to painting on both faces, skirting on both sides, and possibly firestopping at the head. That one-to-many relationship is where the actual work is.
Building this mapping once, as a reusable library, is what makes 5D repeatable. Building it per project is how it becomes more expensive than conventional estimating.
3. A method for unmodeled scope.
Every model omits significant cost. Preliminaries, temporary works, formwork and falsework, scaffolding, craneage, waste, laps and fixings, commissioning, and design fees typically do not appear as geometry.
The workable approach is a factored rules layer: unmodeled items derived from modeled quantities by rule — formwork area from concrete face area, scaffold from façade area and duration, preliminaries from programme duration and site area. These rules sit alongside the element mapping and are maintained as part of the same library.
Where a project's unmodeled proportion is large — refurbishment, heavy civil, complex logistics — the rules layer carries more of the estimate than the model does, and it should be reviewed with corresponding seriousness.
Implementation sequence
A 5D capability is built, not installed. A sensible order:
Stage 1 — Classification discipline. Get every element correctly classified in the authoring model, enforced by the BEP and audited at each issue. Nothing downstream works without this.
Stage 2 — Quantity extraction and reconciliation. Extract quantities and reconcile them against manual measurement on a completed project, until the mapping produces measured quantities rather than raw geometry. Document every convention.
Stage 3 — Rate library. Build the cost item library with rates, sources, and dates. Rates without a documented source and date decay silently.
Stage 4 — Unmodeled rules. Add the factored layer, calibrated against completed project outturns.
Stage 5 — Live cost reporting. Only now connect it to live design, with cost dashboards updated on a defined cycle.
Attempting stage 5 first is the most common implementation error, and it produces numbers nobody trusts enough to act on.
Governance: rates and versions
Two governance requirements determine whether a 5D system remains credible.
Rate provenance. Every rate carries a source, a date, a region, and a basis — quotation, historical outturn, published index, or estimator judgment. A library where rates have drifted for three years without review produces confident, wrong numbers at speed.
Version alignment. The cost plan must state the model version and date it was derived from. Cost figures circulating without a model reference are the fastest way for a project to end up with three different budgets.
Where 5D genuinely pays
The return is highest on:
- Repetitive typologies — the mapping is built once and applied many times
- Design-build and integrated delivery — where the same party benefits from both the design decision and the cost outcome
- Option comparison — where several schemes must be priced quickly and consistently
- Projects with high design volatility — where the update cost of conventional estimating is prohibitive
The return is lowest on one-off, geometrically unusual projects with low modeling maturity, where mapping effort exceeds the estimating effort it replaces.
Where implementations fail
Treating extracted quantities as measured quantities. Covered in detail in our comparison of takeoff methods; it remains the leading cause of wrong 5D numbers.
Classification applied retrospectively. Applying codes to a finished model at stage end is laborious, error-prone, and defeats the live feedback purpose entirely.
No unmodeled scope layer. Produces cost plans that are systematically low by a large margin and lose credibility on first comparison with a tender.
Estimator excluded from the model process. If the quantity surveyor or estimator is not involved in setting the modeling conventions, the model will be built in a way that does not measure. This is an organizational failure that no software resolves.
Chasing precision at concept stage. Element-level cost at LOD 200 conveys a precision the design does not have. Early stages are better served by elemental rates per unit area, with 5D taking over as the model matures.
A realistic view of maturity
Very few organizations run fully live 5D across all projects. The common and defensible position is partial: model-based quantities with reconciliation, a maintained rate library, a rules layer for unmodeled scope, and cost updates on a fortnightly cycle rather than continuously. That delivers most of the design-feedback benefit without requiring perfect model discipline.
Using 5D for design decisions
The capability only pays back if it changes decisions, which requires presenting cost in a form designers can act on.
What works:
Cost per option, not cost of the scheme. Designers do not need the project total weekly. They need to know that option B's façade costs meaningfully more than option A's, and why.

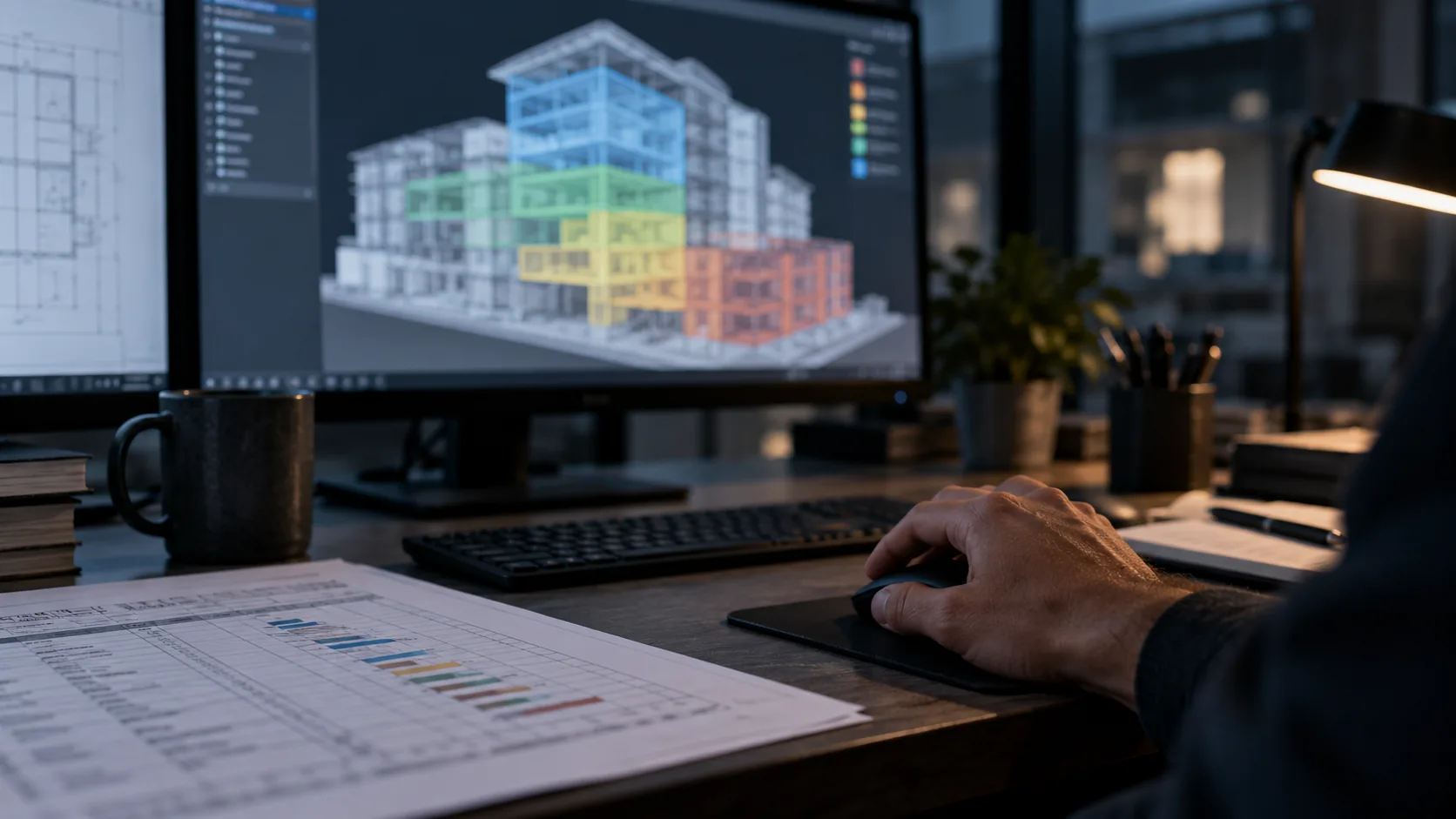

Colour-coded model views by cost intensity. Showing the model with elements shaded by cost per unit area makes expensive decisions visible spatially. Designers find this considerably more actionable than a spreadsheet.
Cost per functional unit. Cost per bed, per key, per parking space, per square metre of lettable area — expressed in whatever unit the client's business case uses.
Early warning against the target. A simple indicator showing whether the current design is tracking above or below budget by element, updated on a defined cycle, so drift is caught in weeks rather than at the stage gate.
Rapid option pricing. The ability to price a design option within a day is what changes design behaviour. If the answer takes two weeks, the design has moved on.
Governance during delivery
Once construction begins, the 5D model's role changes from decision support to control, and different disciplines apply.
Freeze the baseline. The cost model at contract award is the baseline. Every subsequent version is measured against it.
Link variations to model elements. A change priced against identified elements is auditable; one priced against a description is negotiable.
Track committed against estimated. As packages are let, actual subcontract values replace estimated ones, and the residual uncertainty narrows visibly.
Reconcile monthly. Model version, cost version, and commitment position aligned on a fixed cycle. Cost information that drifts out of alignment with the model is worse than no model link at all, because it carries unearned authority.
Retain outturn data. At project close, the reconciled actual cost per element is the most valuable benchmarking data the organisation will ever produce, and it feeds the rate library for the next project. Very few firms capture it, and those that do estimate measurably better.
Frequently asked questions
Does 5D require specialist software? Dedicated 5D platforms help considerably at scale, but a disciplined workflow using model schedules, a structured cost database, and controlled mapping delivers much of the benefit.
Who owns the 5D model? The cost information typically sits with the quantity surveyor or estimator, linked to but separate from the design model. Embedding rates in the design model creates confidentiality and version problems.
Can 5D and 4D be combined? Yes, and it is where the approach is most powerful — cash flow derived from cost linked to sequence. It requires both the cost mapping and the programme linkage to be mature, so it is generally a later step.
